Description

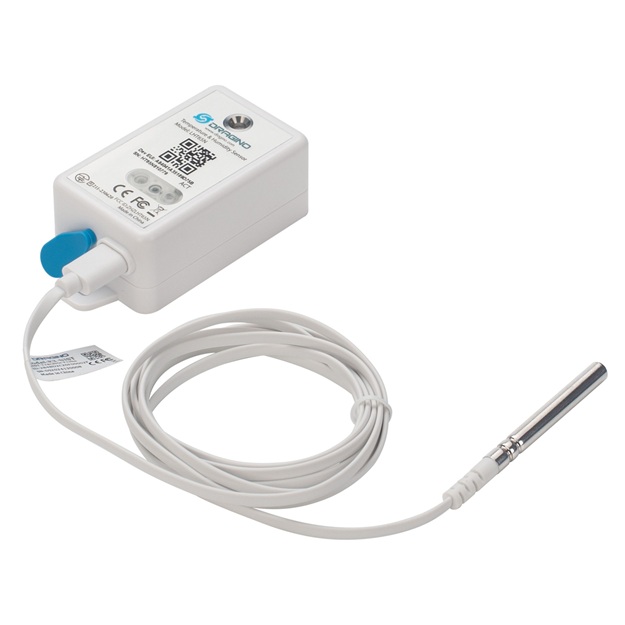

LoRaWAN Sensor device with: External & Internal Temperature, and Internal Humidity sensors
Features
- Sensors:
- Internal: Temperature & Humidity
- External: Temperature (included)
- Optional Alarm feature: Reporting frequency increased if temperatue is outside a configurable range.
- Wall mountable
- LoRaWAN Downlink configurable parameters
- Built-in 2400mAh battery for more than 10 year's use.
Applications
- Smart Buildings & Home Automation
- Smart Agriculture
- Industrial Monitoring
How it works

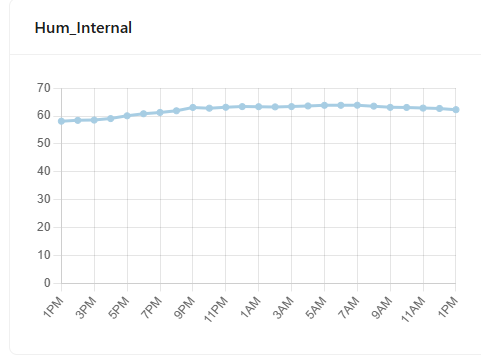

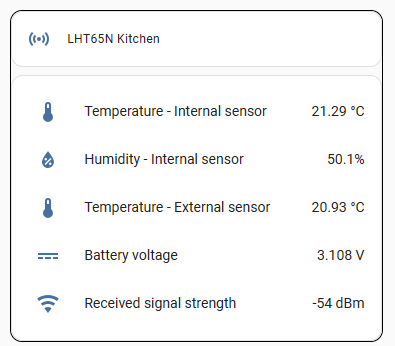

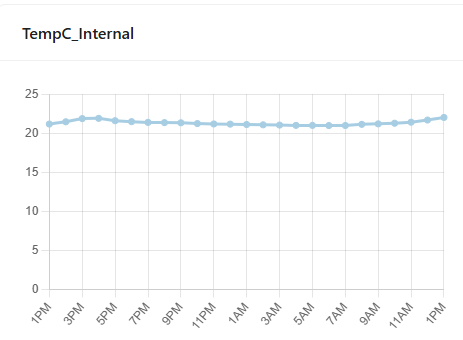

Temperature, Humidity, and battery voltage are reported at regular intervals.
Immediate reporting if Alarm feature triggered.
LoRaWAN
The LoRa wireless technology in this device sends data over extremely long ranges at fixed intervals; default is one measurement every 20 minutes, but can be changed. It provides long range spread spectrum communication and high interference immunity whilst minimising energy consumption. In Australia, the AU915 (915 MHz) band is used, which does NOT need clear line-of-sight.
Decoder
See UBWH LoRaWAN Javascript Decoders. These decoders can be used in LoRaWAN Network Servers such as Chirpstack.
Specifications
| BUILT-IN TEMPERATURE SENSOR
|
|---|
| Resolution | 0.01 °C
|
|---|
| Accuracy tolerance | Typ ±0.3 °C
|
|---|
| Long-term drift | < 0.02 °C/yr
|
|---|
| Operating range | -40 ~ 85 °C
|
|---|
| Alarm mode | Immediate reporting if temperature falls outside set range.
Default: Off
|
|---|
| BUILT-IN HUMIDITY SENSOR
|
|---|
| Resolution | 0.04 %RH
|
|---|
| Accuracy tolerance | Typ ±3 %RH
|
|---|
| Long-term drift | < 0.25 RH/yr
|
|---|
| Operating range | 0 ~ 96.0 %RH(no Dew)
|
|---|

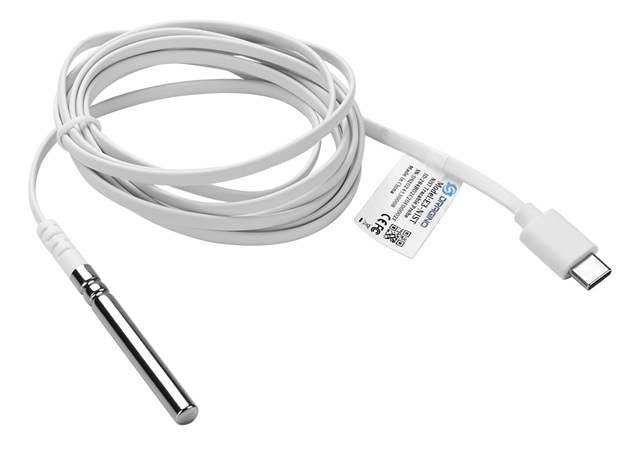

| EXTERNAL TEMPERATURE SENSOR
|
|---|
| Resolution | 0.0625 °C
|
|---|
| Accuracy | ±0.5°C accuracy from -10 to +85°C
±2°C accuracy from -55 to +125 °C
|
|---|
| Operating Range | -55 °C ~ 125 °C
|
|---|
| Cable length | 2 m
|
|---|
| ENCLOSURE
|
|---|
| Operating temp. range | -40 ~ 80 °C
|
|---|
| Weight | 80 g
|
|---|
| Dimensions | 70 x 40 X 30 mm excluding mounting lugs
93 x 40 X 30 mm including mounting lugs
|
|---|
| Default uplink interval | 20 minutes (changeable)
Immediate reporting if internal Temperature alarm triggered.
|
|---|
| Battery life | Up to 10 years.
|
|---|
| Battery replaceable | Yes. 1 x CR17450, 3V 2400 mAh, included.
|
|---|
| LoRaWAN region | AU915
|
|---|
| LoRaWAN protocol | v1.0.3 Class A
|
|---|
Shipping Weights & Dimensions for 1 carton of 4 ea
Dimensions: 12 x 12 x 16 cm
Volume: 0.0023 m3
Volumetric Weight: 0.58 kg
Dead Weight: 0.70 kg
