Description

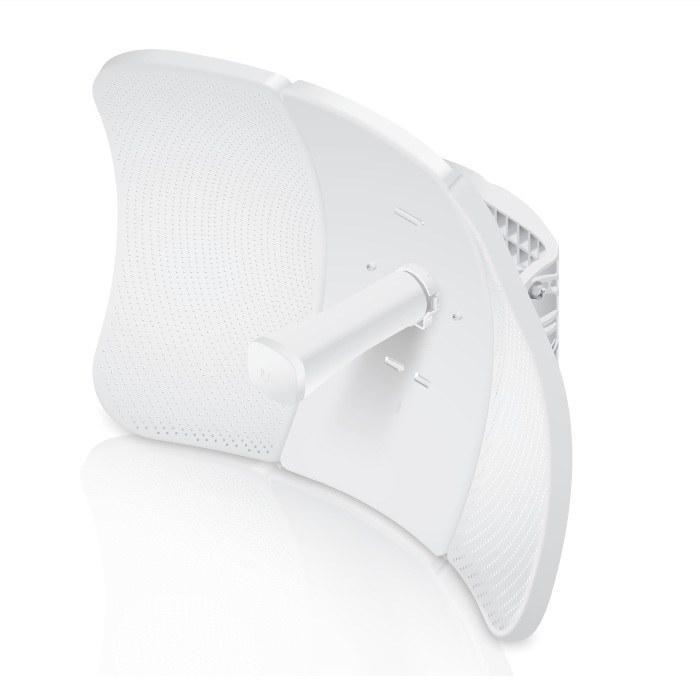

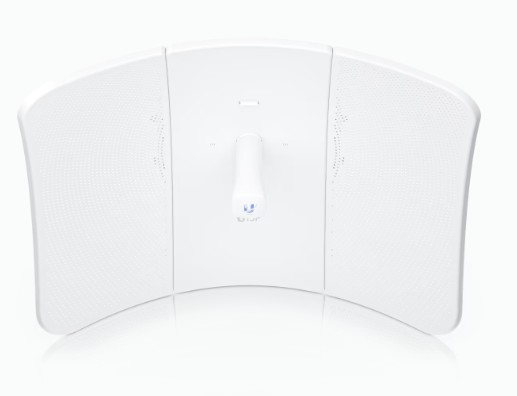

Ubiquiti LTU-XR 5 GHz PtMP LTU Extra Long-Range Client, Functions in a PtMP environment with the LTU-Rocket as the BaseStation.
Features
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
Specifications
| MECHANICAL
|
|---|
| Dimensions | 747 x 525 x 347 mm
|
|---|
| Weight | 3.2 kg
|
|---|
| Enclosure material | Aluminum alloy
UV-stabilized polycarbonate
|
|---|
| Mount material | UV-stabilized polycarbonate
|
|---|
| Mount | Integrated pole mount (included)
|
|---|
| Pole compatibility | Ø35 to 60 mm
|
|---|
| Wind loading | 1100 N at 200 km/h
|
|---|
| Weatherproofing | IPX6
|
|---|
| HARDWARE
|
|---|
| Networking interface | (1) GbE RJ45 port
|
|---|
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-)
|
|---|
| Power supply | 24V, 0.5A gigabit PoE adapter (Included)
|
|---|
| Supported voltage range | 22—27V DC
|
|---|
| Max. power consumption | 9W
|
|---|
| RF connections | Internal
|
|---|
| LEDs | Power/Ethernet
|
|---|
| Button | Factory reset
|
|---|
| Ambient operating temperature | -40 to 55° C
|
|---|
| Ambient operating humidity | 5 to 95% non-condensing
|
|---|
| SOFTWARE
|
|---|
| Modes | PtMP CPE, PtP. 1.5.1 and later 1.5.x series firmware.
|
|---|
| Services | SNMP
SSH
dynamic DNS
webserver
remote log
ping watchdog
|
|---|
| Utilities | airView®
speed test
alignment
discovery
ping
traceroute
cable test
constellation
|
|---|
| Auto distance adjustment | Yes
|
|---|
| Auto power adjustment | Yes
|
|---|
| Network | Bridge/Router modes. Router mode is available in PtMP CPE mode only.
|
|---|
| Security | Yes
|
|---|
| Statical reporting | Yes
|
|---|
| Management interface | Bluetooth management for easy setup over UISP App
WEB UI
|
|---|
| Minimum software requirements | Any modern web browser
iOS™ or Android™ based smartphone
|
|---|
| SYSTEM
|
|---|
| Maximum throughput | 900+ Mbps. FW version 2.3.0 and later.
|
|---|
| Encryption | WPA2-PSK (AES)
|
|---|
| Uplink/downlink ratio | 25/75, 33/67, 50/50
|
|---|
| RF
|
|---|
| Operating frequency | 5.15 to 5.95 GHz
Depends on regulatory region.
|
|---|
| Max. conducted TX power | 25 dBm
|
|---|
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz
FW version 2.3.0 and later.
|
|---|
| Antenna gain | 29 dBi
|
|---|
| Isolation | 20 dB
|
|---|
| Beamwidth
| HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
|
|---|
| Elevation | 3 dB: 5.5°
6 dB: 7.5°
|
|---|
| Electrical downtilt | 0°
|
|---|
Shipping Weights & Dimensions for 1 carton of 2 ea
Dimensions: 30 x 20 x 50 cm
Volume: 0.03 m3
Volumetric Weight: 7.5 kg
Dead Weight: 7.50 kg
