$239.00 RRP

$208.84 Your price
But I want less than a carton...

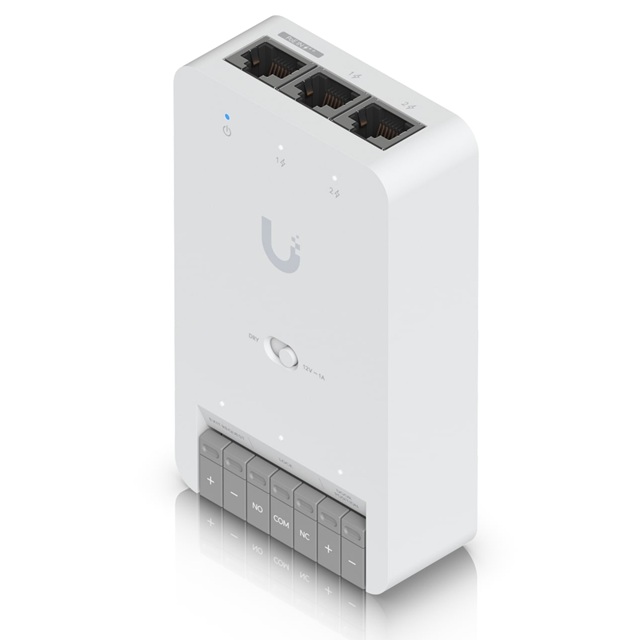

UniFi Access Door Hub Mini

[UA-Hub-Door-Mini]

Availability (ea)	East coast:
Availability (ea)	West coast:	-1
	Total:	-1

Min. Order Qty: 2

UA-Hub-Door-Mini | UniFi Access Door Hub Mini

Description

Compact Access Control Hub For a Single Door.

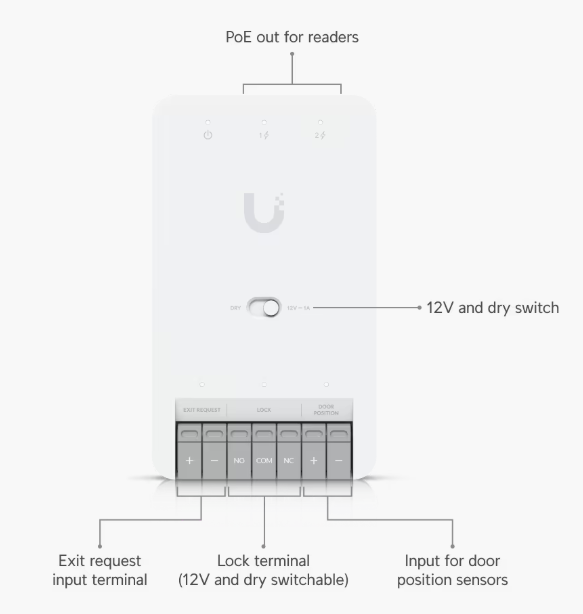

Features

(1) Lock terminal (12V and Dry switchable)
(2) Additional inputs (sensor and button)
Connect and power via PoE++

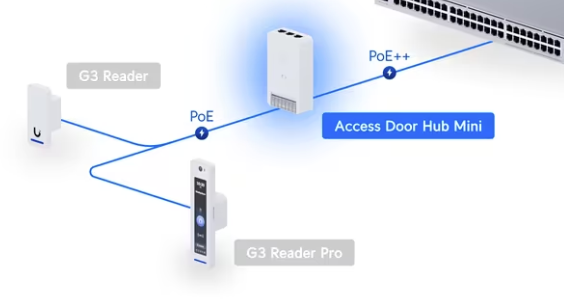

Connect up to two UniFi Access Readers or Protect Cameras

Specifications

OVERVIEW

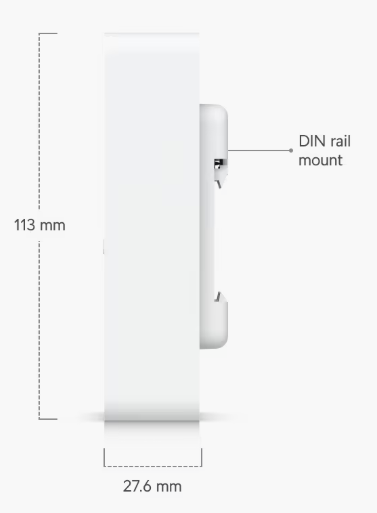

Dimensions	113 x 66 x 27.6 mm
Supported Doors	1
Input Terminals	(1) Door exit request (1) Door position
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
MECHANICAL
Weight	190 g
Enclosure Material	Polycarbonate, metal

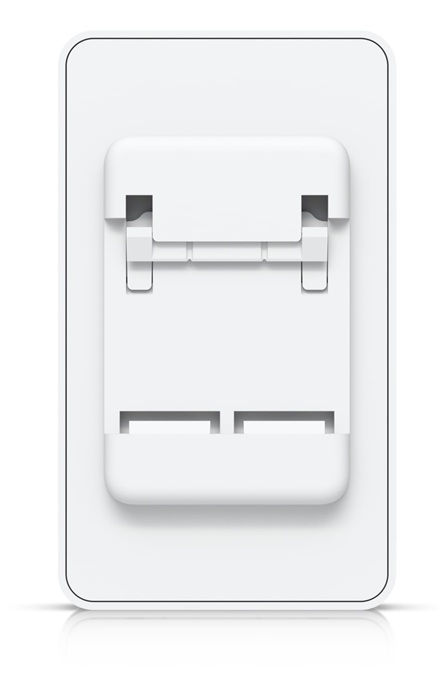

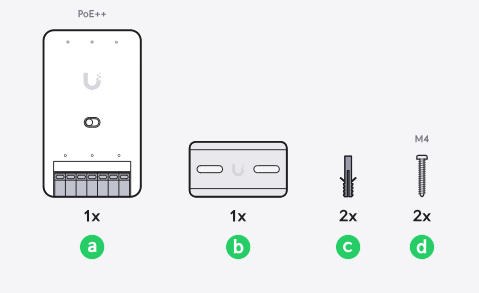

Mounting	DIN-rail (Included)
HARDWARE
Useage	Indoor only
Ambient Operating Temperature	0 to 40° C
Ambient Operating Humidity	5 to 90% noncondensing

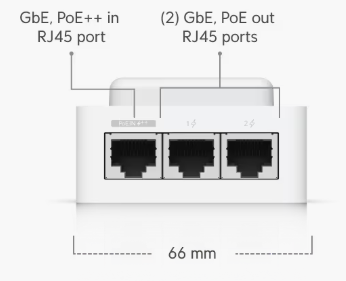

Networking Interfaces	(3) GbE RJ45 ports
PoE Interface	(1) PoE++ input, 50 VDC, 1A (2) PoE outputs, total 31W
Max. Power Consumption	19 W (Without PoE output) 50 W (With PoE output)
Dry Output Relay	30 VDC, 1 A
Wet Output Relay	12 VDC, 1 A

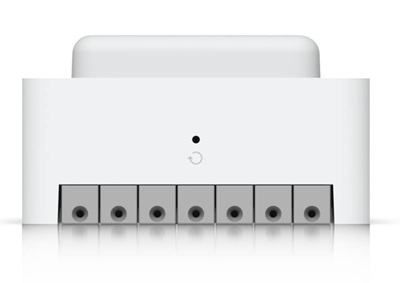

Buttons	(1) Factory-reset (1) Dry/Wet switch
RECOMMENDED CABLE LENGTHS
UA-Lock-Electric (400mA)	24 AWG length: 25 m 22 AWG length: 42 m	20 AWG length: 66 m 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 12 m 22 AWG length: 20 m 20 AWG length: 30 m 18 UACC-Cable-DoorLockRelay length: 46 m
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m 22 AWG length: 20 m 20 AWG length: 30 m 18 UACC-Cable-DoorLockRelay length: 46 m
Other locks (1A)	24 AWG length: 9 m 22 AWG length: 15 m 20 AWG length: 24 m 18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Hub-Door-Mini, V01
SOFTWARE
Management Application	Access
Software Information	The software version can be checked at https://unifi.ui.com
