Description

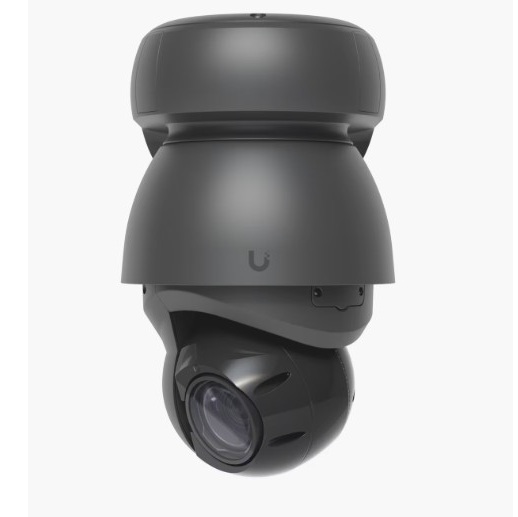

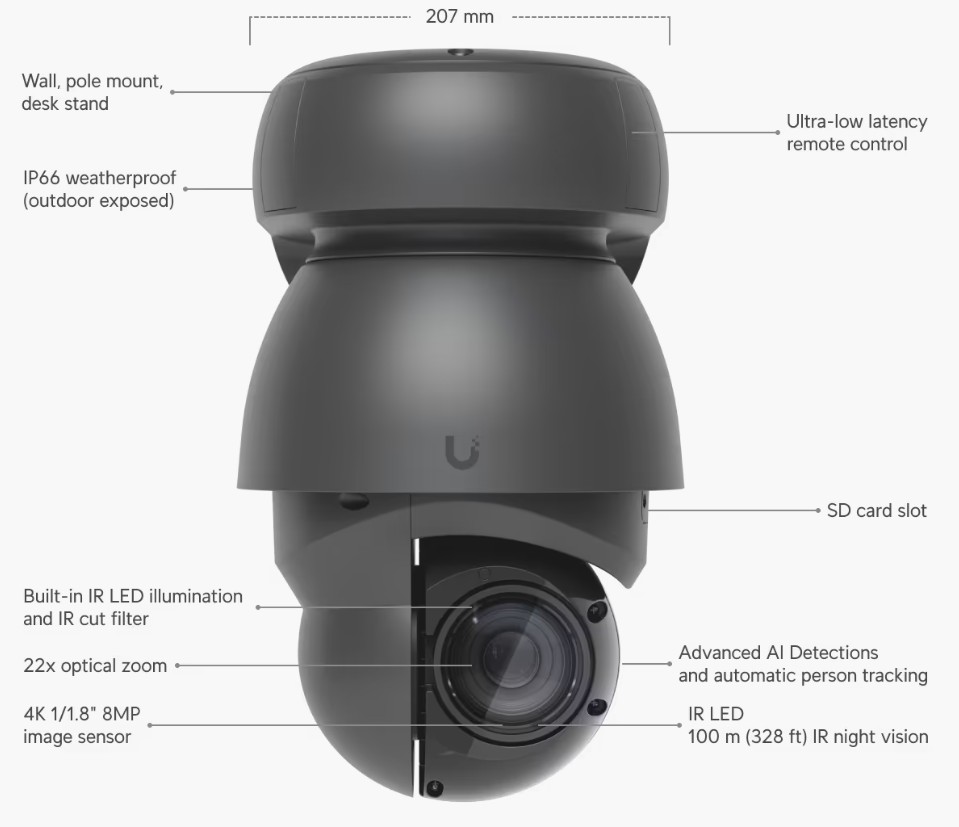

Industrial-grade 4K PoE++ PTZ camera with enhanced AI capabilities, 22x optical zoom, and long-range adaptive IR LED night vision.
Features
- Industrial
- PTZ
- AI
- PoE powered
- Optical zoom (22 x)
Specifications
| OVERVIEW
|
|---|

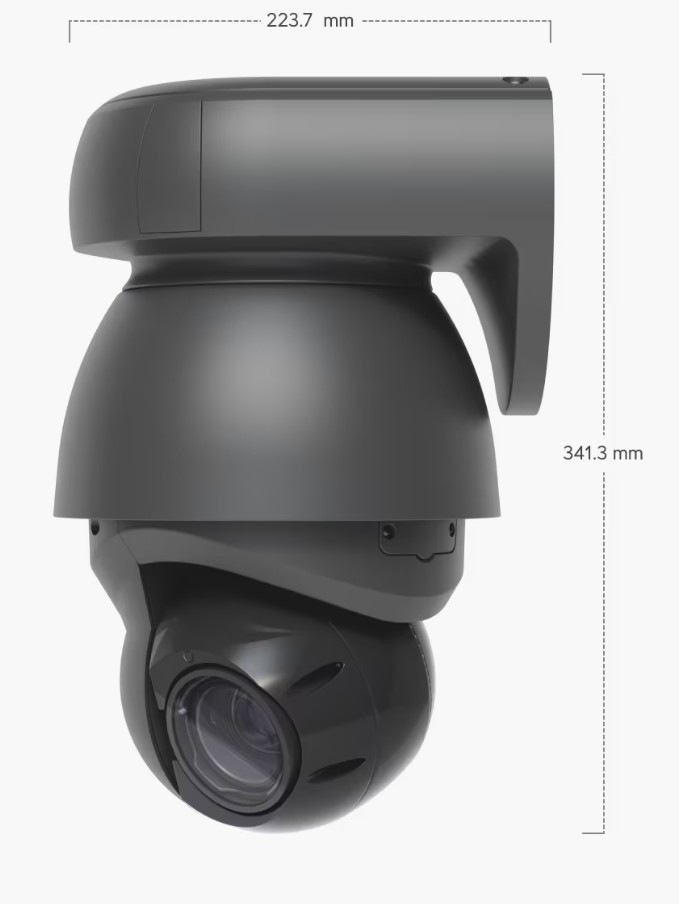

| Dimensions
| 207 x 223.7 x 341.3 mm
|
|---|
| IR Night Vision
| 100 m
|
|---|
| Zoom Mode
| 22 x Optical
|
|---|
| Face Recognition
| ✓
|
|---|
| License Plate Recognition
| ✓
|
|---|
| Smart Detections | People, Vehicles, Animals
|
|---|
| Resolution
| 4K
|
|---|
| Field of View
| H: 3 to 64°, V: 2 to 37°
|
|---|
| Pan-Tilt Range
| Pan: 360° (Endless)
Tilt: 120°
|
|---|
| Weatherproofing
| IP66
|
|---|

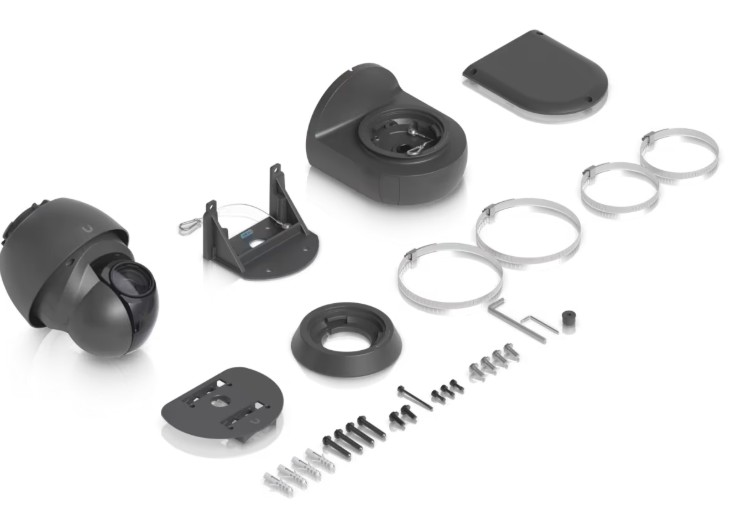

| Mounting
| Wall, Pole mount, Desk stand (Included)
|
|---|
| PERFORMANCE
|
|---|

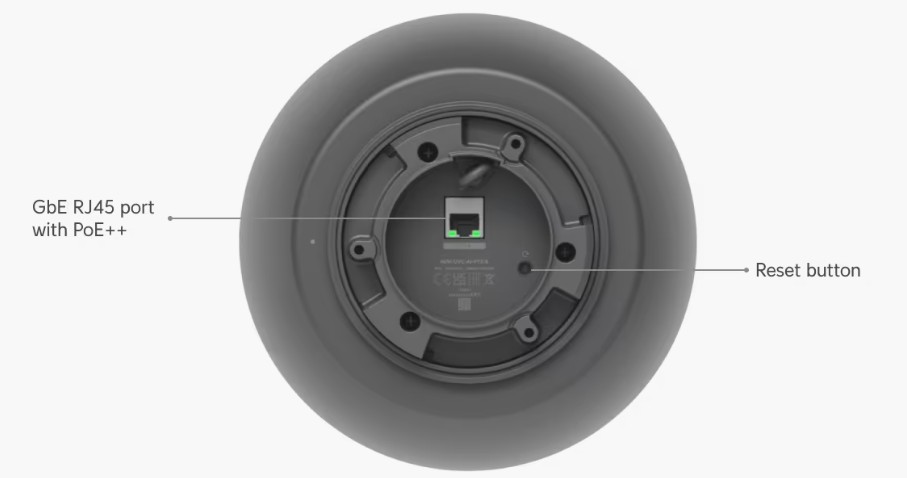

| Networking Interface
| GbE RJ45 port
|
|---|
| Video - Image Settings
| Color
brightness
sharpness
contrast
white balance
exposure control
2DNR
3DNR
NR by motion
masking
text overlay
|
|---|
| Video - Max. Frame Rate
| 30 FPS
|
|---|
| Video - Resolution
| 8MP 3840 x 2160 (16:9)
|
|---|
| Optics - Sensor
| 1/1.8" 8MP
|
|---|
| Optics - Lens
| 22x optical zoom lens
|
|---|
| Optics - Night Mode
| Built-in IR LED illumination and IR cut filter
|
|---|
| HARDWARE
|
|---|
| Max. Power Consumption
| 51W
|
|---|
| Supported Voltage Range
| 42.5—57V DC
|
|---|
| Power Method
| PoE++
|
|---|
| Processor
| Quad-core Arm® Cortex®-A53 based chip
|
|---|
| Weight
| Without mount: 3.8 kg
Wall mount (Pedant): 3 kg
Table stand: 150 g
Pole mount: 320 g
|
|---|
| Enclosure Material
| Aluminum alloy, polycarbonate
|
|---|
| Mount Material
| Powder-coated aluminum alloy
|
|---|
| Expansion Slot
| MicroSD card
|
|---|
| Button
| (1) Factory-reset
|
|---|
| Ambient Operating Temperature
| -40 to 50º C
|
|---|
| Ambient Operating Humidity
| 0 to 90% noncondensing
|
|---|
Shipping Weights & Dimensions for 1 carton of 2 ea
Dimensions: 25 x 37 x 45 cm
Volume: 0.0416 m3
Volumetric Weight: 10.4 kg
Dead Weight: 15.00 kg
