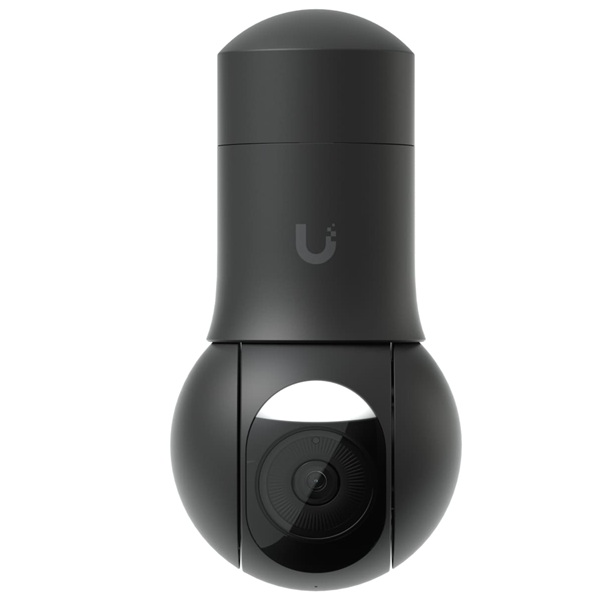

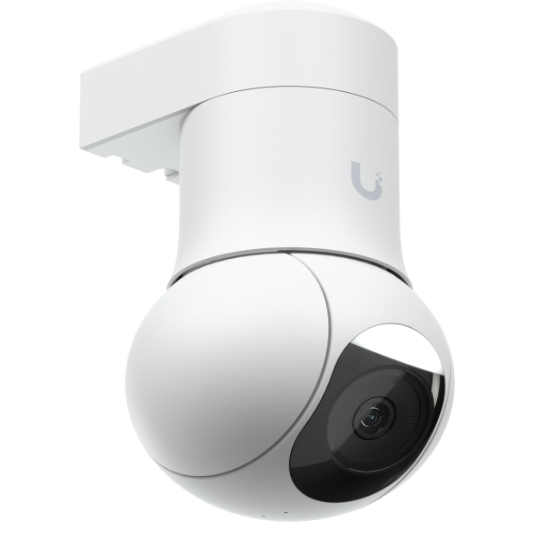

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control, and versatile mounting options.

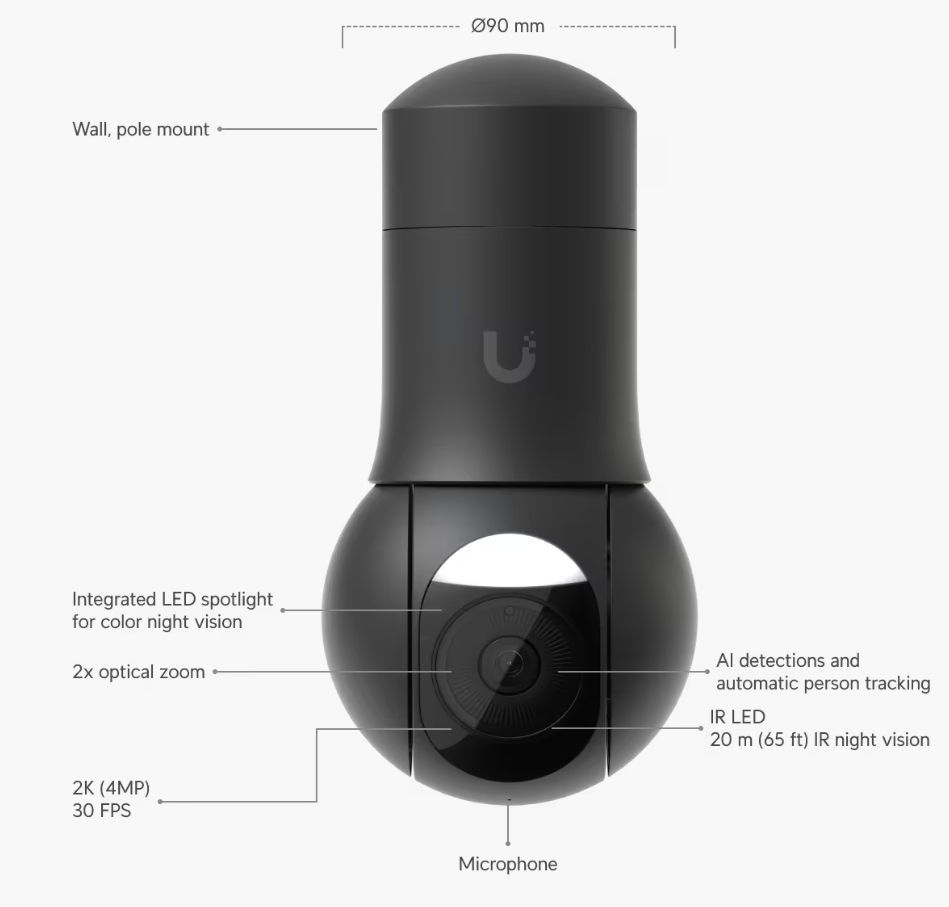

Features
- 2K (4MP) video resolution
- 2x optical zoom
- 20 m IR night vision
- AI event detections and automatic person tracking
- Record audio with an integrated microphone
- Integrated LED spotlight for color night vision
- Connect and power using PoE+
- Weatherproof (outdoor exposed)
Specifications
| Mechanical |
|---|

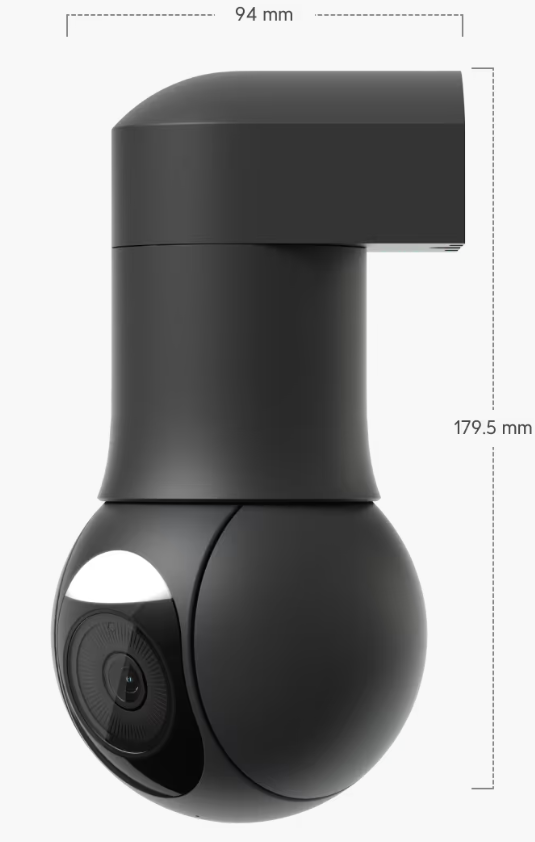

| Dimensions | Without mount: Ø90 x 152.5 mm
With mount: 90 x 94 x 179.5 mm |
| Weight | Without mount: 580 g
With mount: 650 g |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Wall mount: polycarbonate

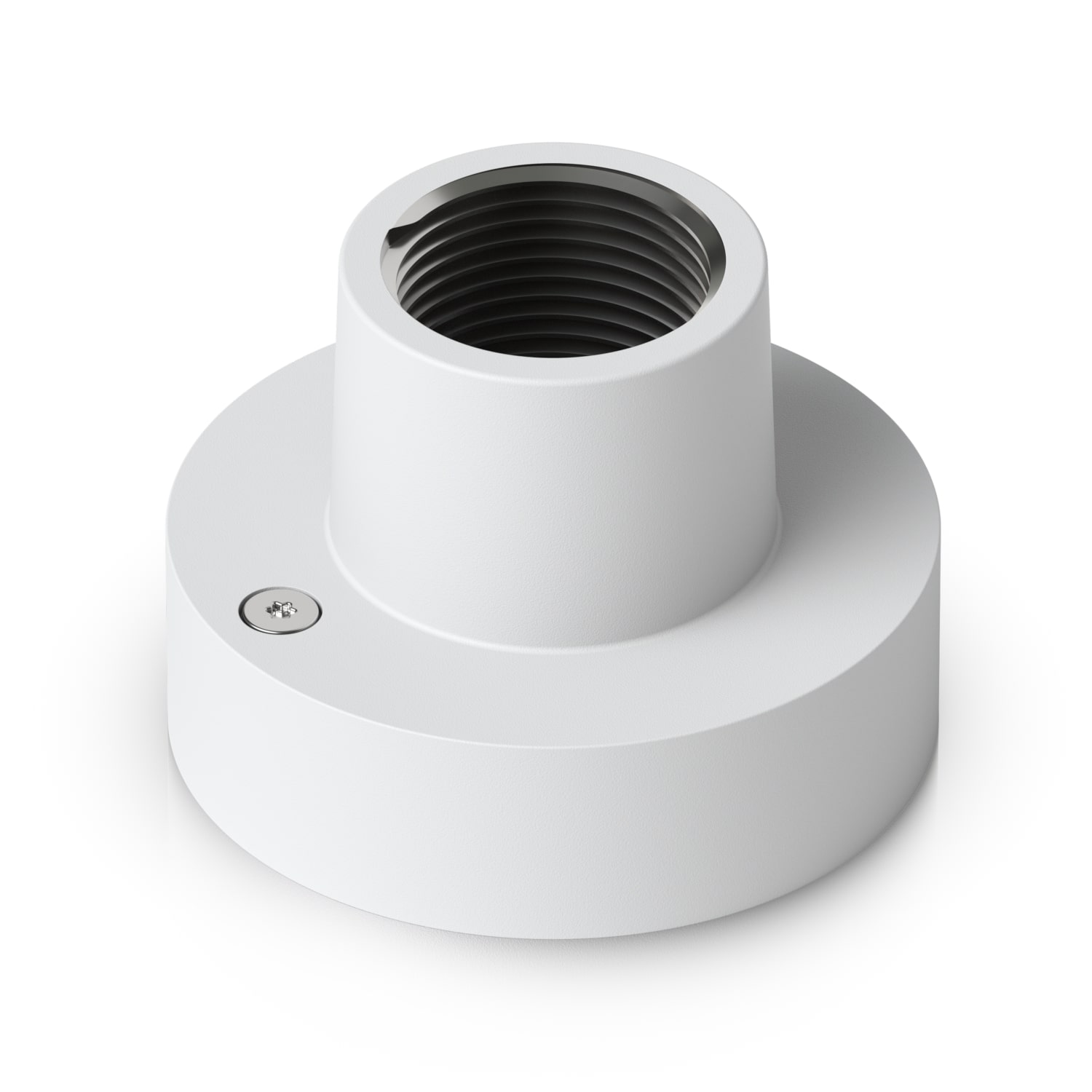

Pole mount: aluminum alloy |
| Pole mount diameter | 38–50 mm on pipe outer diameter |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Optics |
|---|
| Sensor | 5MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| View angle | 16:9 Wide: H: 99.7°, V: 51.9°, D: 121°
16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Night mode | Built-in IR & white LED illumination with IR cut filter |
| IR distance | 20 m |
| IR limitation | Keep distance from top/side ≥60 cm |
| Video |
|---|
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| System |
|---|

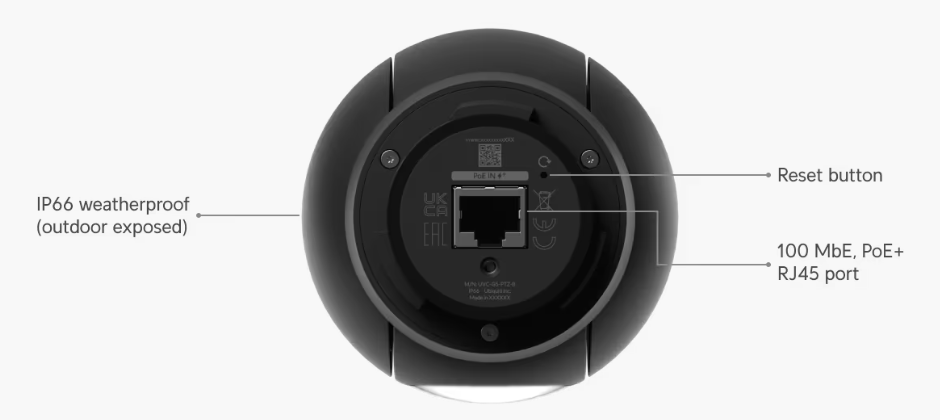

| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 14 W |
| Power method | PoE+ |
| Supported voltage range | 37–57V DC |
| LEDs | R/G/B/W: link, activity
Floodlight: 400 lm |
| Button | Factory reset |

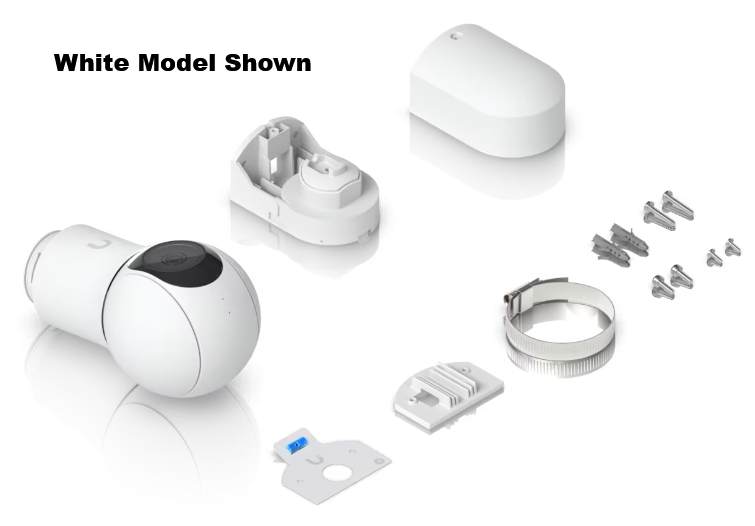

| Mounting | Wall, pole mount (Included)
Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately) |
| Ambient operating temperature | -30 to 45º C |
| Ambient operating humidity | 0 to 90% noncondensing |
| Audio |
|---|
| Microphone | Yes (Can be disabled) |
| Software |
|---|
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Shipping Weights & Dimensions for 1 carton of 2 ea
Dimensions: 12 x 12 x 34 cm
Volume: 0.0049 m3
Volumetric Weight: 1.23 kg
Dead Weight: 1.50 kg
