$609.00 RRP

$551.14 Your price
But I want less than a carton...

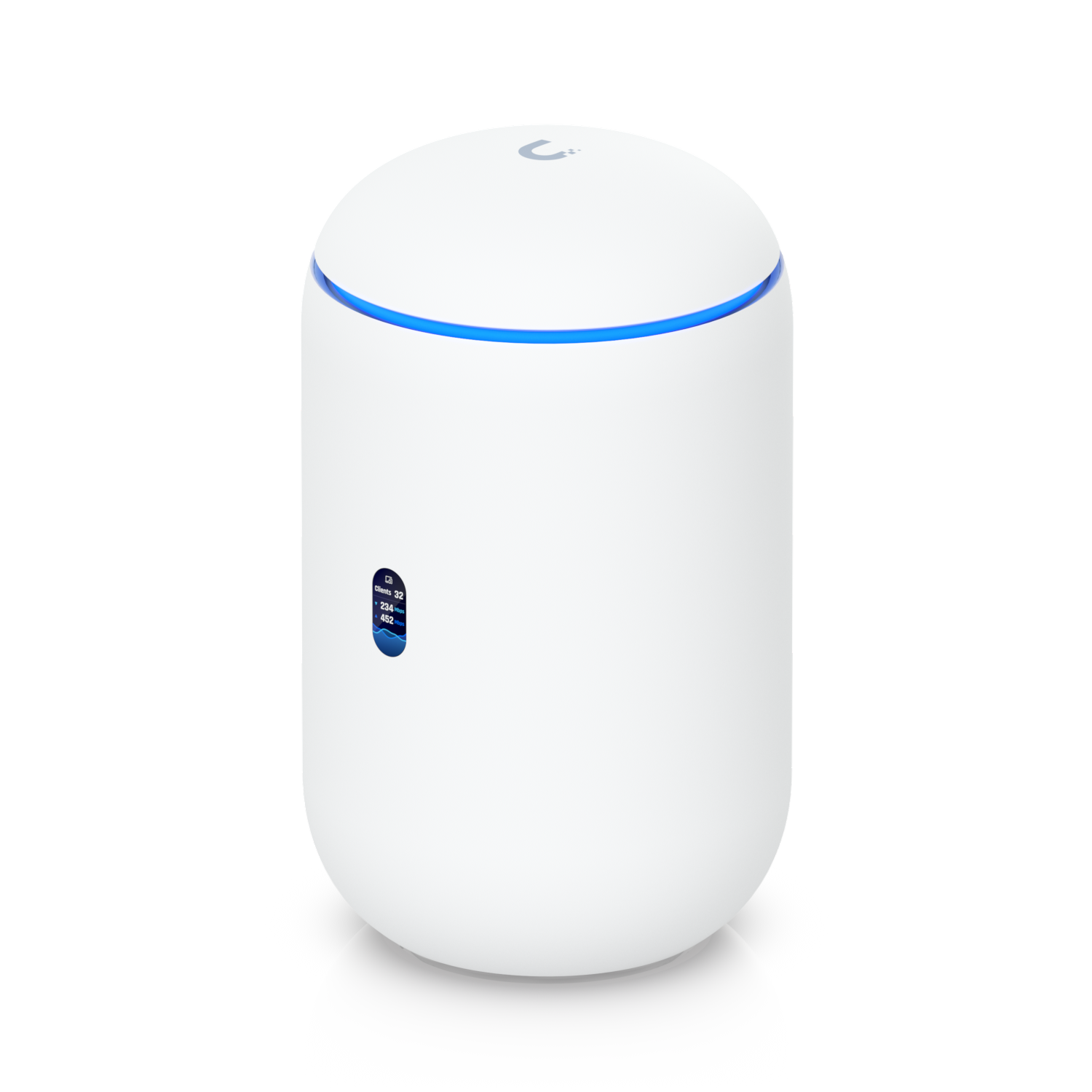

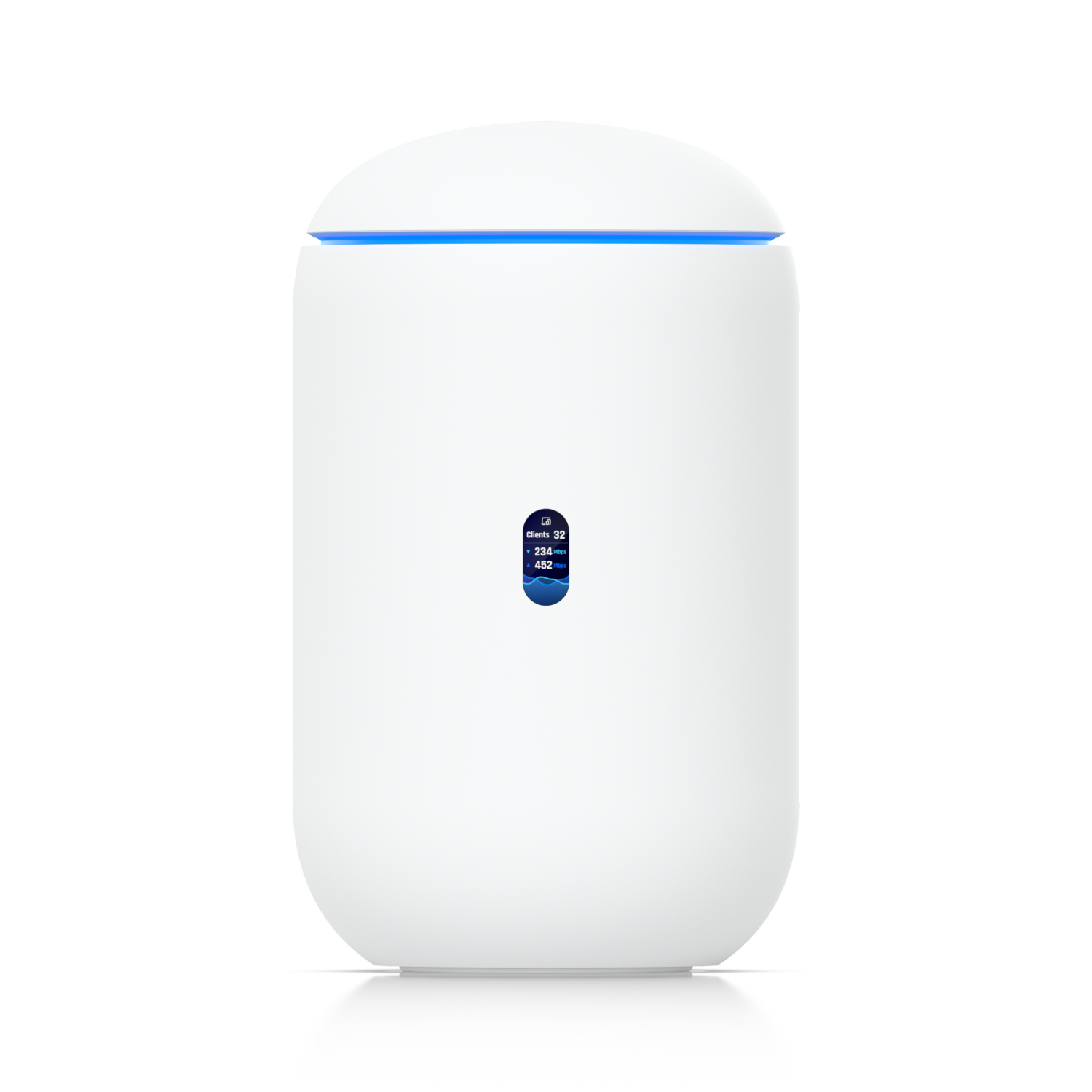

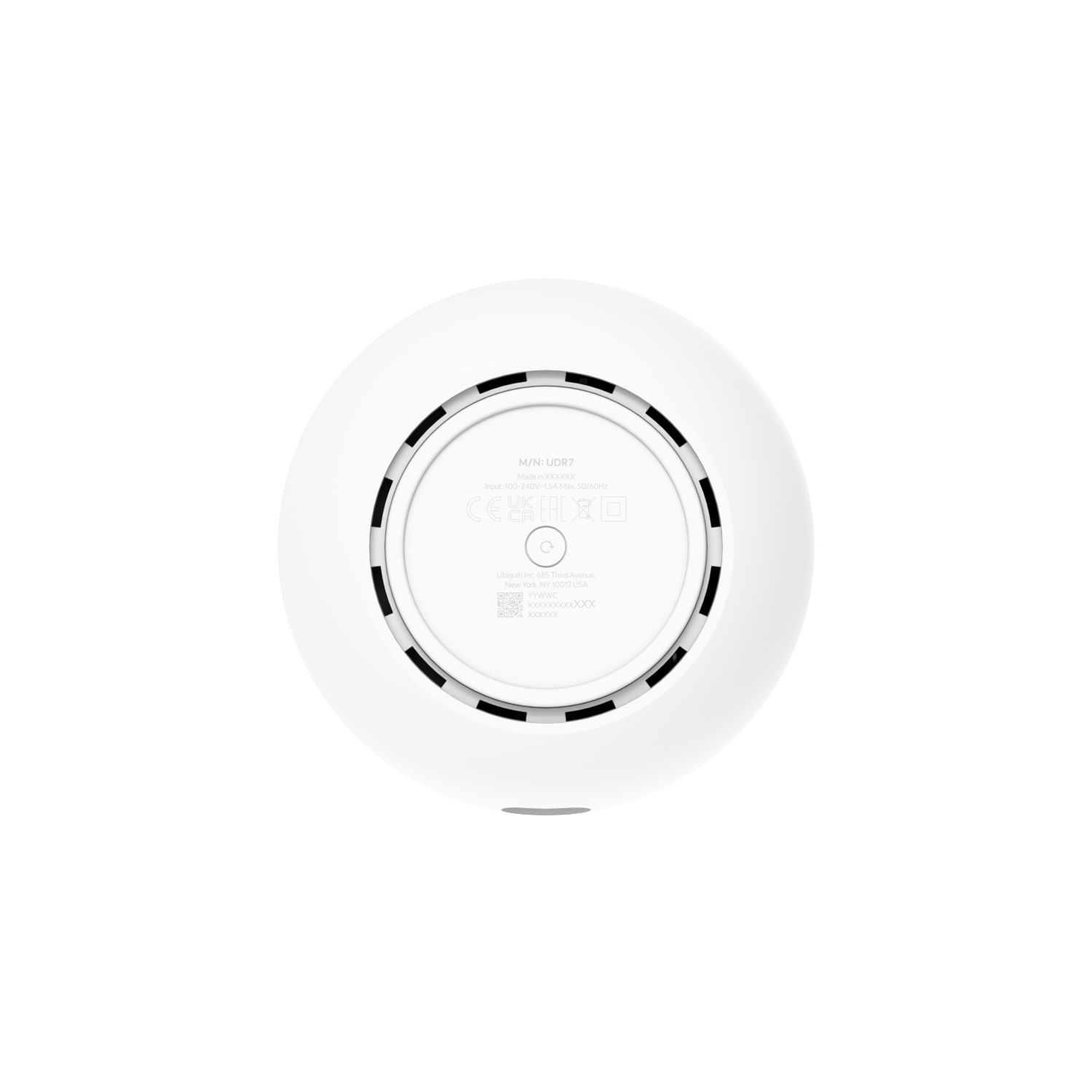

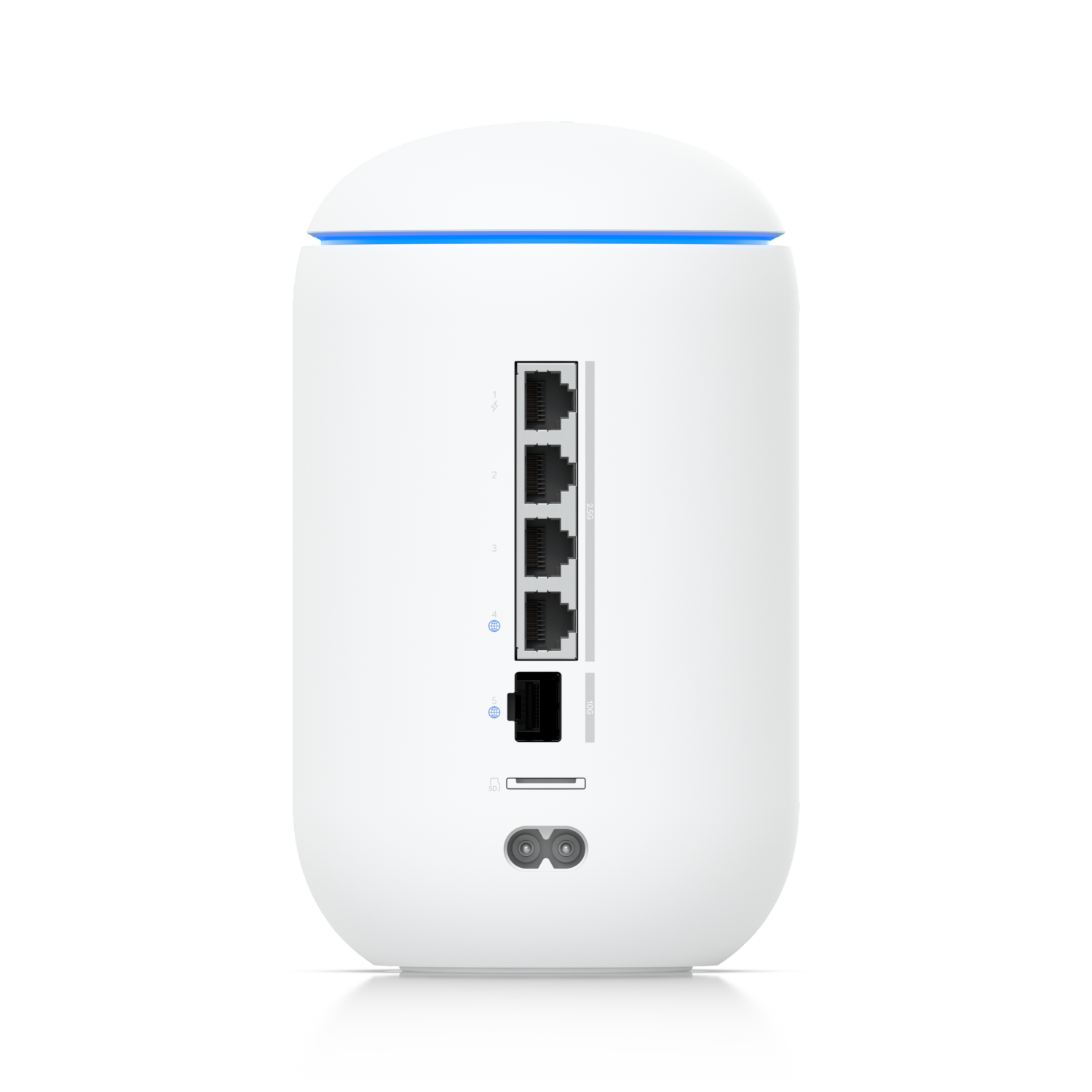

UniFi Dream Router 7 - WiFi 7 AP

[UDR7]

Min. Order Qty: 6

Description

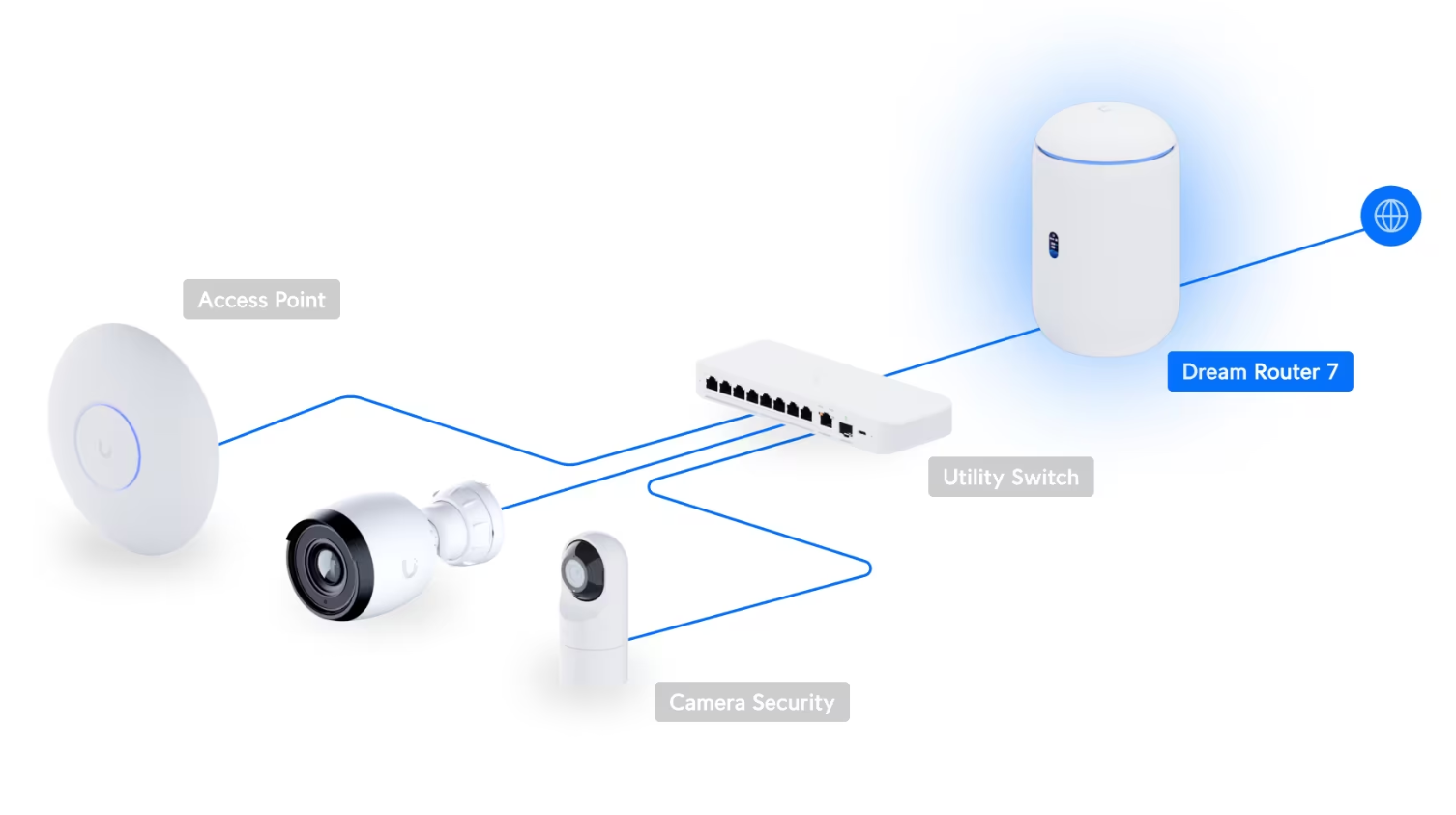

Desktop 10G Cloud Gateway with integrated WiFi 7, Switch (with 1 x PoE), microSD storage, and full UniFi application support.

OVERVIEW

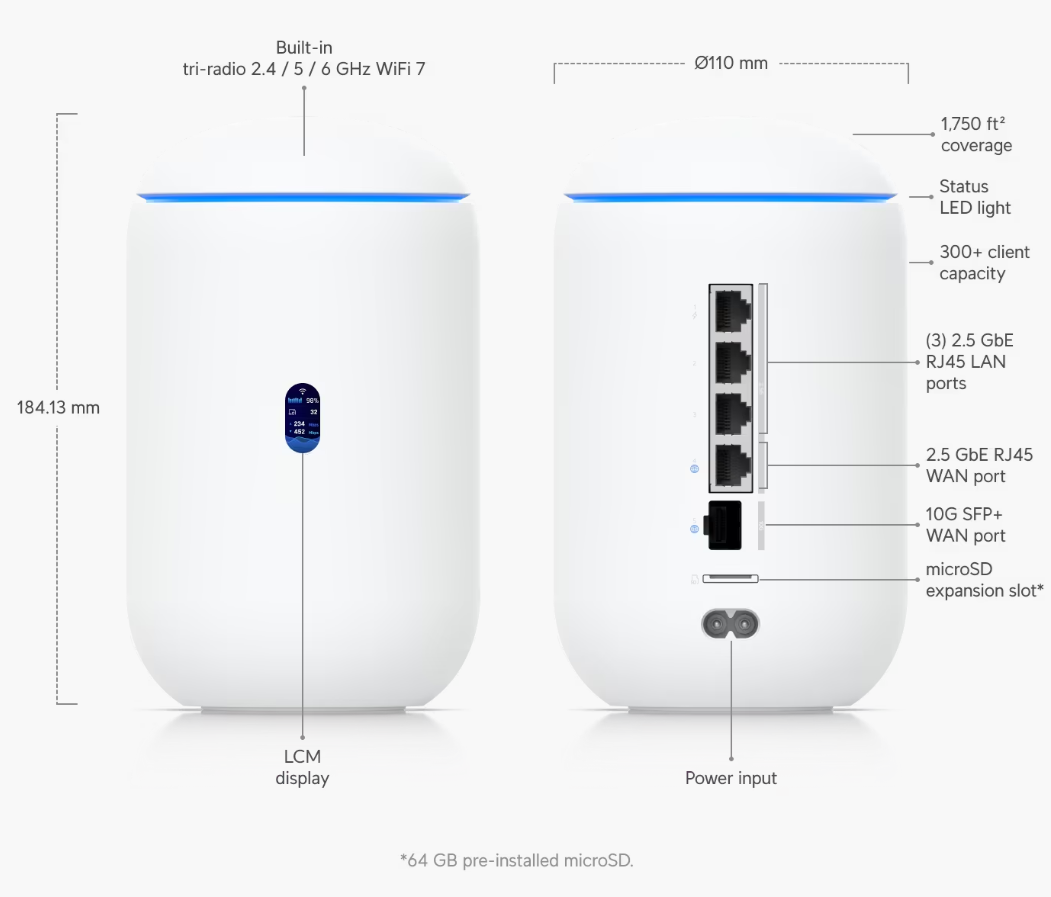

Dimensions	Ø110 x 184.1 mm
UniFi Application Suite	Network Protect Access Talk Connect
Managed UniFi Devices	30

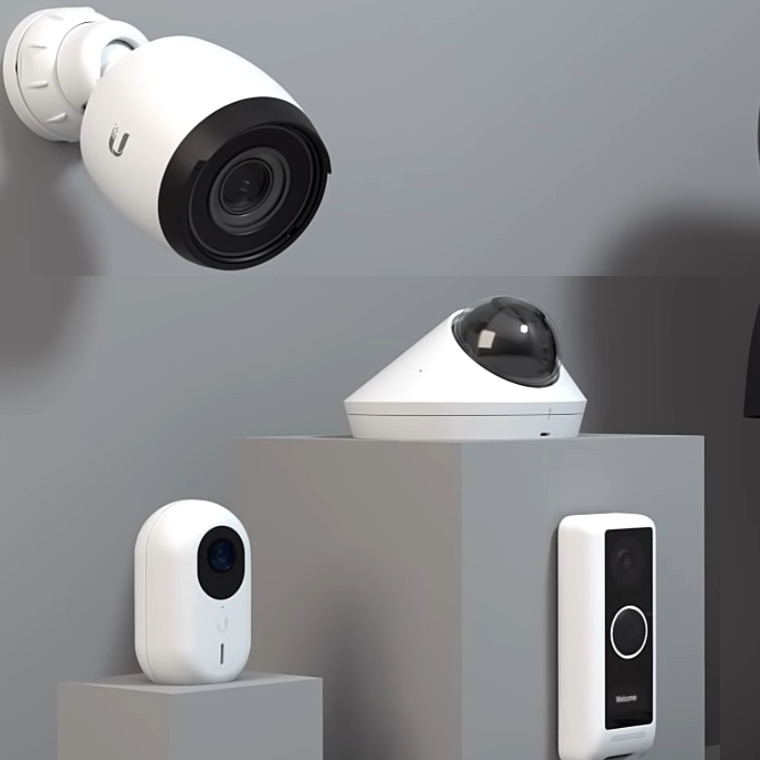

Managed Cameras	(5) HD (2) 2K (1) 4K
Simultaneous Users Connected	300
Max. WAN Port Count	4
Default WAN Ports	(1) 10G SFP+ (1) 2.5 GbE RJ45
IDS/IPS Throughput	2.3 Gbps
Form Factor	Compact desktop
Coverage Area	160 m²

SECURITY
Features	Stateful Firewall Application-Aware Layer 7 Firewall DPI & Traffic Identification Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Content Filtering Intrusion Prevention (IPS/IDS) Ad Blocking VLAN/Subnet-based Traffic Segmentation
IDS/IPS Signatures	20,000+ with CyberSecure

VPN & SD-WAN
License-Free SD-WAN	Included
Site-to-Site VPN	Site Magic IPsec OpenVPN
VPN Server	Identity Endpoint One-Click VPN Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP
VPN Client	OpenVPN WireGuard

NETWORKING
Features	Multi-WAN Load Balancing Dynamic Routing-OSPF Advanced QoS Multicast DNS (mDNS) Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Integrated RADIUS Server RADIUS over TLS (RadSec) Additional Internet Failover with UniFi LTE Backup Internet Quality and Outage Reporting Policy-based WAN and VPN Routing Customizable DHCP Server IPv6 ISP Support IGMP Proxy
MAC Address Table Size	2,000

INTEGRATED WIFI
WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput	6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps
MIMO	6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain	6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 5 dBi
Max. TX Power	6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs	4 per Radio
Supported Data Rates	802.11a:6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

HARDWARE
NVR Storage	Pre-installed 64GB microSD for NVR
Expansion Slot	MicroSD Card
PoE Budget	15.4 W
Max. PoE Power per Port by PSE	15.4 W
Voltage Range PoE Mode	44-57 V
Max. Power Consumption	26 W (Excluding PoE output)
Power Method	Universal AC input, 100—240 VAC, 1.5 A Max, 50/60 Hz
Power Supply	AC/DC, Internal, 50 W
Supported Voltage Range	100—240V AC
Processor	Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory	3 GB
Weight	1.1 kg
Enclosure Material	Polycarbonate
LCM Display	0.96" status display
Management	Ethernet Bluetooth
LEDs	System
Button	(1) Factory-reset
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature	-10 to 40° C
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, ACMA
