Description

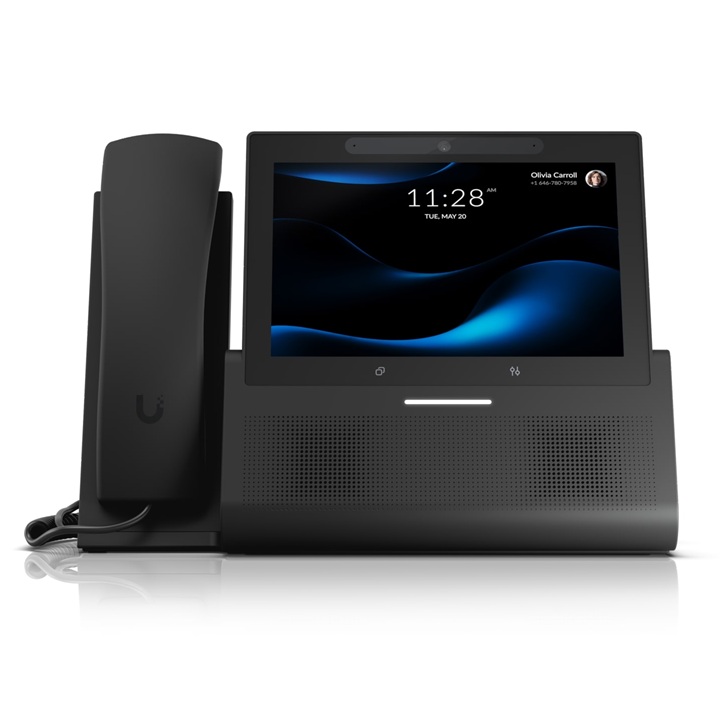

Next-generation premium desktop smartphone for UniFi Talk, featuring a 7" touch display and seamless integration with UniFi applications.
Features
- Easily integrates with 3rd party PBX platforms using Talk Relay
- Optional G3 Wireless Handset for added flexibility
- High-performance speakerphone for clear audio
- Ergonomic handset with a mute button
- Bluetooth connectivity for added versatility
- Powered by PoE+ or USB-C (5V DC, 3A)
Specifications
OVERVIEW
|
---|
Mounting
| Desktop
|
---|
Integrated Camera
| ✓
|
---|
Touch Screen Technology
| Multi-Touch
|
---|
Bluetooth
| ✓
|
---|
Available Colors
| Black
|
---|
MECHANICAL
|
---|

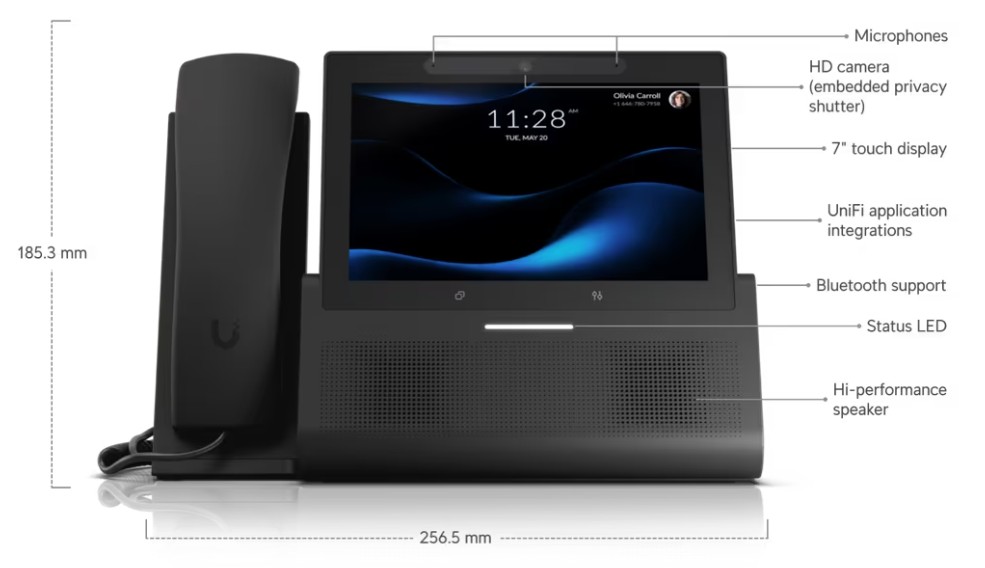

Dimensions
| 256.5 x 139.5 x 185.3 mm
|
---|
Weight
| 1.5 kg
|
---|
Enclosure Material
| Polycarbonate, aluminum alloy (base)
|
---|
HARDWARE
|
---|

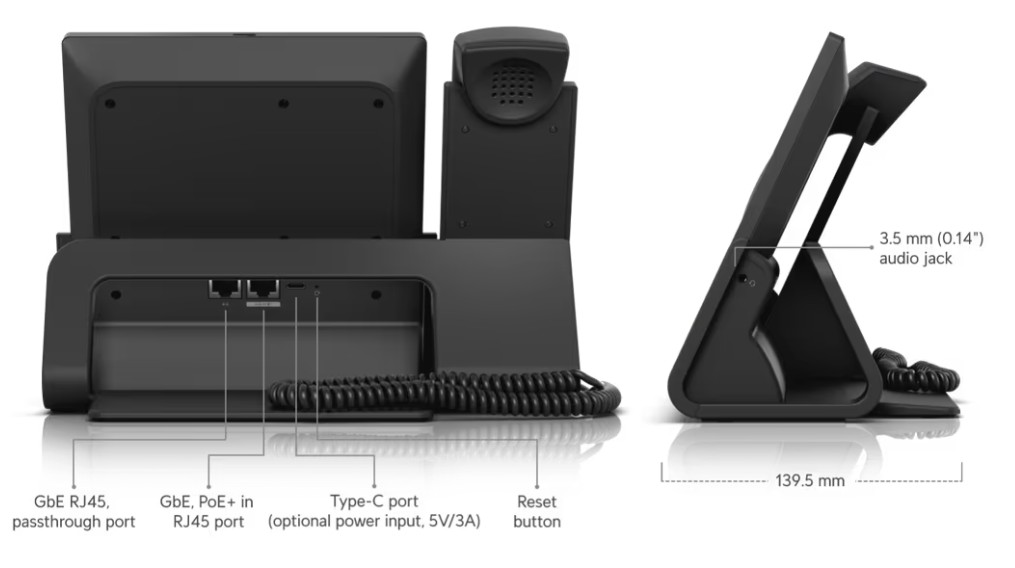

Connectivity
| (2) GbE RJ45 ports
802.11 a/b/g/n/ac WiFi
Bluetooth® 4.2 (General use)
Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only)
NFC support
|
---|
Power Method
| USB type-C 5V DC, 3A
PoE 44—57V DC, 15.4W
|
---|
Max. Power Consumption
| 11W
|
---|
Processor
| Octa-core ARM® Cortex®-A53
|
---|
Memory
| Storage: 32 GB
RAM: 2 GB
|
---|
Camera
| 2592 x 1944, 5MP
(Embedded privacy shutter)
|
---|
Display
| Screen Surface Treatments: Anti-Glare Coating
Size: 178 mm diagonal
Resolution: 1280 x 800 HD
|
---|
Audio - Hands-Free Microphone
| Dual omnidirectional MEMS microphone
|
---|
Audio - Hands-Free Speaker
| Dual 3W speaker
|
---|
Audio - Handset Microphone
| Omnidirectional electret condenser microphone
|
---|
Audio - Handset Dynamic Receiver
| Standard wideband-capable audio
|
---|
Buttons
| (1) Mute Button
|
---|
Headset Support
| 3.5 mm audio jack
|
---|
LED
| R/G/B/W
|
---|
NFC Frequency
| 13.56 MHz
|
---|
NFC Read Range
| < 10 mm
|
---|
NFC Technology
| ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
|
---|
Ambient Operating Temperature
| 0 to 40° C
|
---|
Ambient Operating Humidity
| 10 to 90% noncondensing
|
---|
SOFTWARE
|
---|
UniFi Application Suite | Talk
Talk Relay
|
---|
Shipping Weights & Dimensions for 1 carton of 2 ea
Dimensions: 32 x 28 x 21 cm
Volume: 0.0188 m3
Volumetric Weight: 4.7 kg
Dead Weight: 3.50 kg
