Description

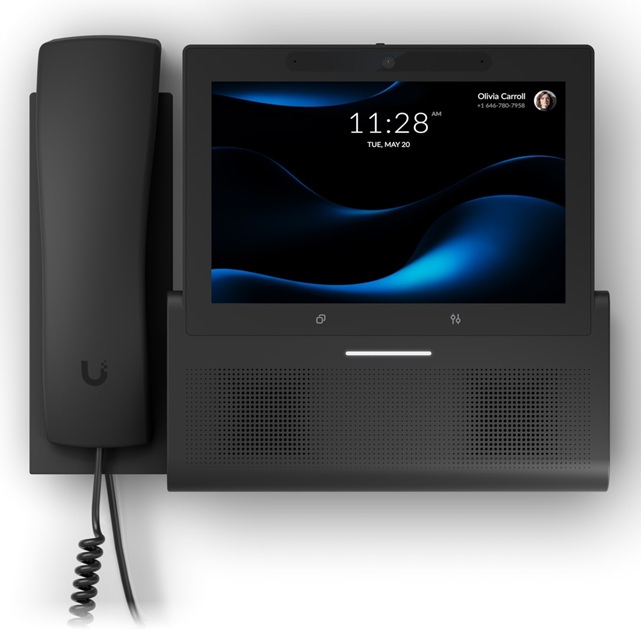

Next-generation wall-mountable smartphone for UniFi Talk, featuring a 7" touch display and seamless integration with UniFi applications.
Features
- Easily integrates with 3rd party PBX platforms using Talk Relay
- Optional G3 Wireless Handset for added flexibility
- High-performance speakerphone for clear audio
- Ergonomic handset with a mute button
- Bluetooth connectivity for added versatility

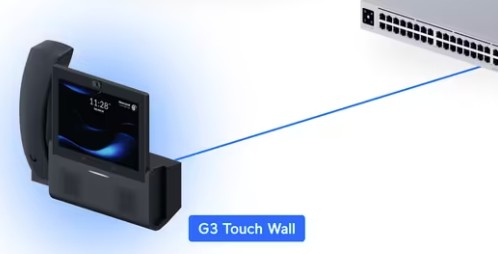

- Powered by PoE+ or USB-C (5V DC, 3A)

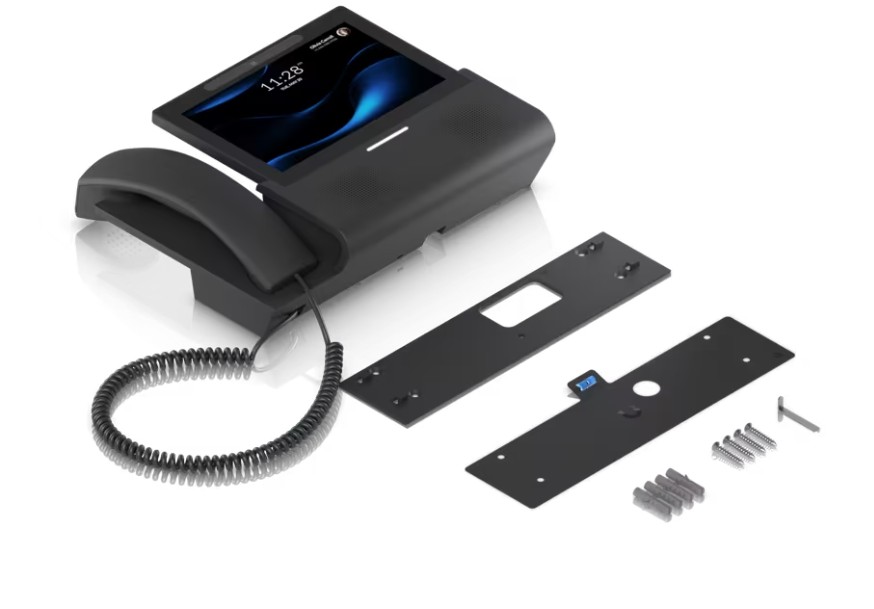

- Wall-mountable
Specifications
| OVERVIEW
|
|---|
| Mounting
| Wall
|
|---|
| Integrated Camera
| ✓
|
|---|
| Touch Screen Technology
| Multi-Touch
|
|---|
| Bluetooth
| ✓
|
|---|
| Available Colors
| Black
|
|---|
| MECHANICAL
|
|---|

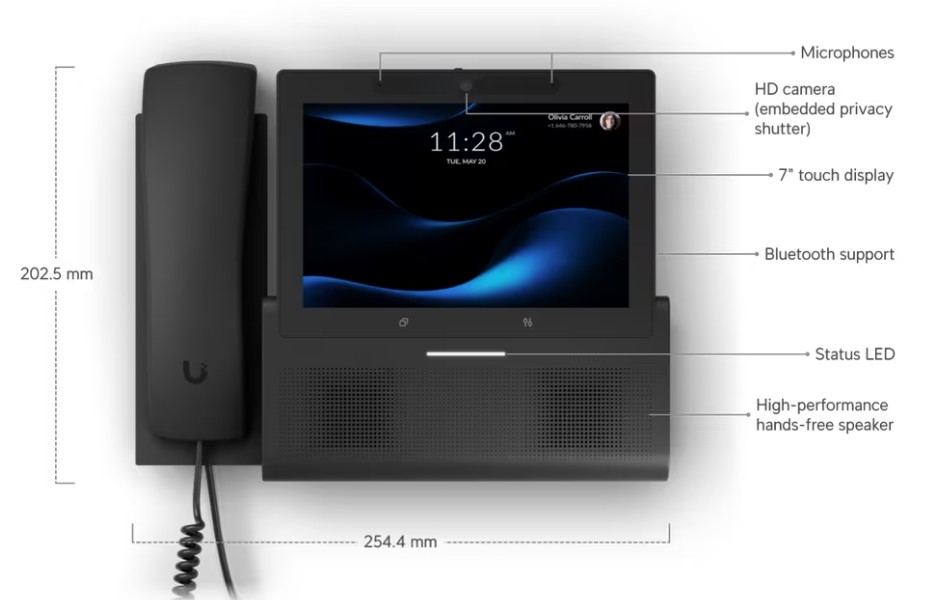

| Dimensions
| 254.4 x 202.5 x 70.1 mm
|
|---|
| Weight
| 1.1 kg
|
|---|
| Enclosure Material
| Polycarbonate, aluminum alloy (base)
|
|---|
| HARDWARE
|
|---|

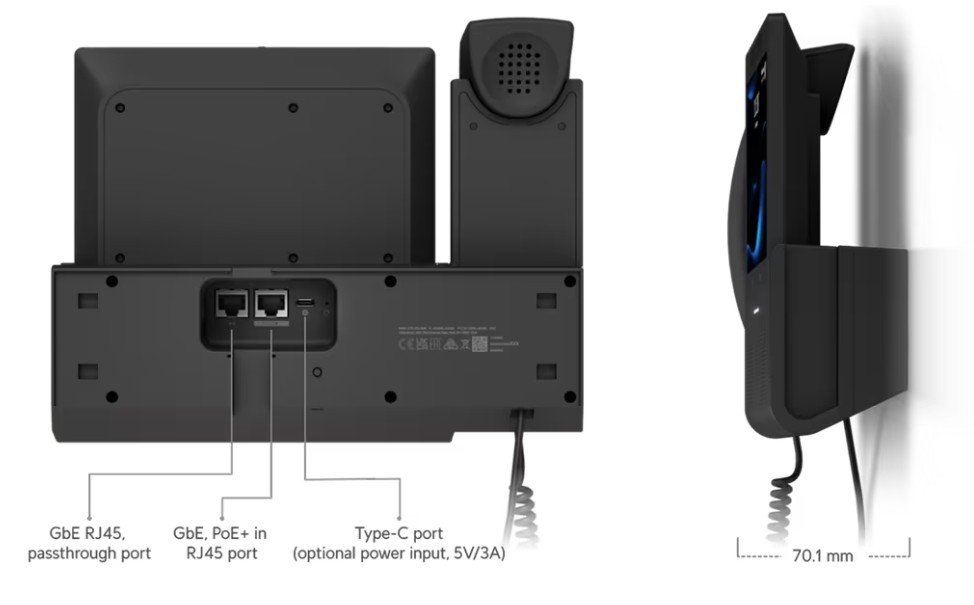

| Connectivity
| (2) GbE RJ45 ports
802.11 a/b/g/n/ac WiFi
Bluetooth® 4.2 (General use)
Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only)
NFC support
|
|---|
| Power Method
| USB type-C 5V DC, 3A
PoE 44—57V DC, 15.4W
|
|---|
| Max. Power Consumption
| 11W
|
|---|
| Processor
| Octa-core ARM® Cortex®-A53
|
|---|
| Memory
| Storage: 32 GB
RAM: 2 GB
|
|---|
| Camera
| 2592 x 1944, 5MP
(Embedded Privacy shutter)
|
|---|
| Display
| Screen Surface Treatments: Anti-Glare Coating
Size: 178 mm diagonal
Resolution: 1280 x 800 HD
|
|---|
| Audio
| Hands-Free Microphone: Dual omnidirectional MEMS microphone
Hands-Free Speaker: Dual 3W speaker
Handset Microphone: Omnidirectional electret condenser microphone
Handset Dynamic Receiver: Standard wideband-capable audio
|
|---|
| Buttons
| (1) Mute Button
|
|---|
| LED
| R/G/B/W
|
|---|
| NFC Frequency
| 13.56 MHz
|
|---|
| NFC Read Range
| < 10 mm
|
|---|
| NFC Technology
| ISO/IEC 14443A / 14443B / 15693 / 18092
(Ecma 340) MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
|
|---|
| Ambient Operating Temperature
| 0 to 40° C
|
|---|
| Ambient Operating Humidity
| 10 to 90% noncondensing
|
|---|
| SOFTWARE
|
|---|
| UniFi Application Suite
| Talk
Talk Relay
|
|---|
Shipping Weights & Dimensions for 1 carton of 2 ea
Dimensions: 24 x 29 x 20 cm
Volume: 0.0139 m3
Volumetric Weight: 3.48 kg
Dead Weight: 2.50 kg
